Proxy及其在Vue3中的使用

发表于 | 分类于

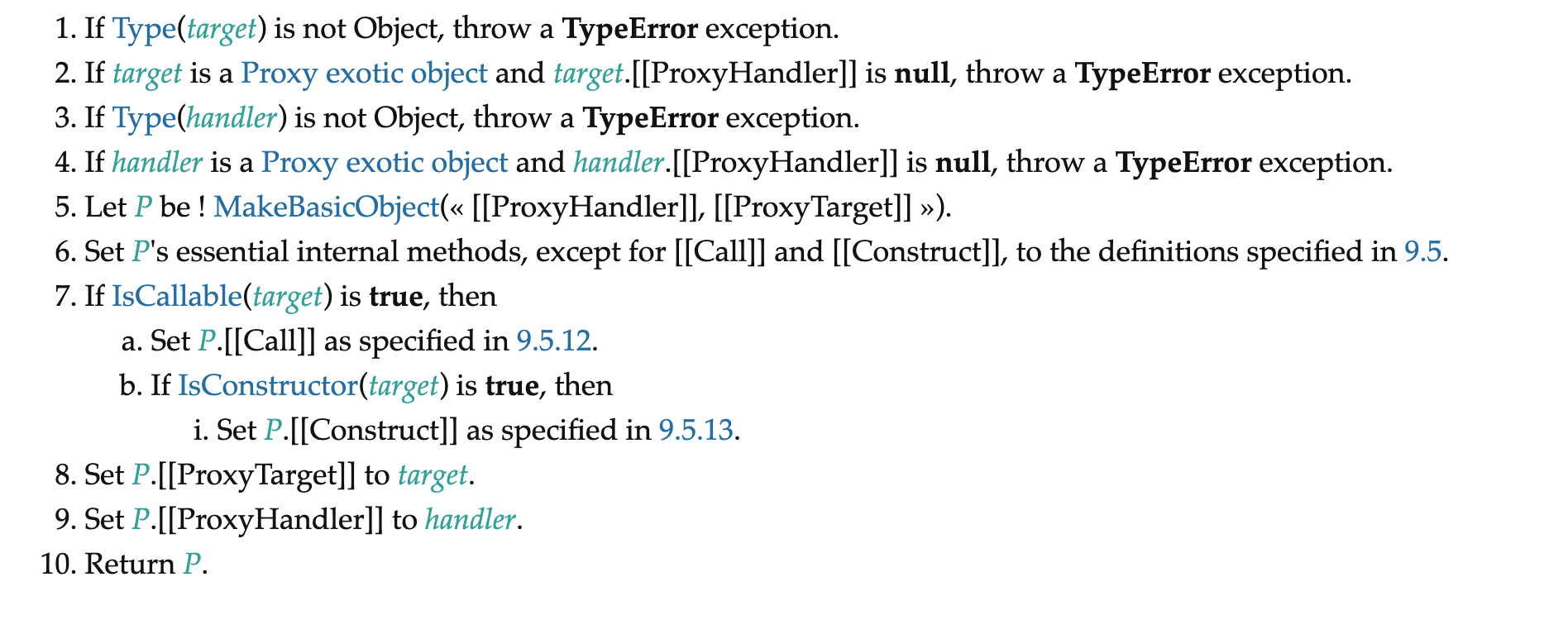

Proxy的原理以及在Vue3中的使用Proxy代替Object.defineProperty实现reactive

基本使用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
var handler = {
    get: function(obj, prop) {
      console.log('get', prop, obj[prop])
      return obj[prop]
    },
    set: function (obj, prop, value) {
      console.log('set', prop)
      obj[prop] = value
    }
};

var p = new Proxy({}, handler);
p.a = 1;
console.log(p.a);
// set a
// get a 1
// 1

vue3中的实现

代码都在Proxy

reactive

  • 实例demo

    1
    2
    3
    var a = Vue.reactive({
      a: 1
    });

  • Vue.reactive这个api是从@vue/reactivity这个包导出的

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    export function reactive(target: object) {
      // if trying to observe a readonly proxy, return the readonly version.
      if (target && (target as Target)[ReactiveFlags.IS_READONLY]) {
        return target
      }
      return createReactiveObject(
        target,
        false,
        mutableHandlers,
        mutableCollectionHandlers
      )
    }

  • createReactiveObject最终会执行以下代码,new 了一个Proxy的实例

    1
    2
    3
    4
    5
    6
    7
    8
    9
    const observed = new Proxy(
      target,
      collectionTypes.has(target.constructor) ? collectionHandlers : baseHandlers
    )
    def(
      target,
      isReadonly ? ReactiveFlags.READONLY : ReactiveFlags.REACTIVE,
      observed
    )

  • collectionHandlers是给collectionTypes使用的，主要有Set, Map, WeakMap, WeakSet，其他的数据类型都是用baseHandlers

对基本数据类型的处理

  • collectionHandlers和baseHandlers又有好几种:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    import {
      mutableHandlers,
      readonlyHandlers,
      shallowReactiveHandlers,
      shallowReadonlyHandlers
    } from './baseHandlers'
    import {
      mutableCollectionHandlers,
      readonlyCollectionHandlers,
      shallowCollectionHandlers
    } from './collectionHandlers'

  • mutableHandlers会代理5种操作

    • 其中get = createGetter()
      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15
      16
      17
      18
      19
      20
      21
      22
      23
      24
      25
      26
      27
      28
      29
      30
      31
      32
      33
      34
      35
      36
      37
      38
      39
      40
      41
      42
      43
      44
      45
      46
      47
      48
      49
      50
      51
      52
      53
      54
      55
      56
      57
      58
      59
      60
      61
      export const mutableHandlers: ProxyHandler<object> = {
        get,
        set,
        deleteProperty,
        has,
        ownKeys
      }
      function createGetter(isReadonly = false, shallow = false) {
        return function get(target: object, key: string | symbol, receiver: object) {
          if (key === ReactiveFlags.IS_REACTIVE) {
            return !isReadonly
          } else if (key === ReactiveFlags.IS_READONLY) {
            return isReadonly
          } else if (
            key === ReactiveFlags.RAW &&
            receiver ===
              (isReadonly
                ? (target as any)[ReactiveFlags.READONLY]
                : (target as any)[ReactiveFlags.REACTIVE])
          ) {
            return target
          }

          const targetIsArray = isArray(target)
          if (targetIsArray && hasOwn(arrayInstrumentations, key)) {
            return Reflect.get(arrayInstrumentations, key, receiver)
          }

          const res = Reflect.get(target, key, receiver)

          if (
            isSymbol(key)
              ? builtInSymbols.has(key)
              : key === `__proto__` || key === `__v_isRef`
          ) {
            return res
          }

          if (!isReadonly) {
            track(target, TrackOpTypes.GET, key)
          }

          if (shallow) {
            return res
          }

          if (isRef(res)) {
            // ref unwrapping, only for Objects, not for Arrays.
            return targetIsArray ? res : res.value
          }

          if (isObject(res)) {
            // Convert returned value into a proxy as well. we do the isObject check
            // here to avoid invalid value warning. Also need to lazy access readonly
            // and reactive here to avoid circular dependency.
            return isReadonly ? readonly(res) : reactive(res)
          }

          return res
        }
      }

  • 先通过Reflect.get获取到原始值

  • 只要不是readonly的话，就会使用track进行记录: 用一个全局的targetMap来存所有target，每个target有一个对应的depsMap，存储每个被proxy的key以及其依赖activeEffect。如果activeEffect是undefined，就不会计入依赖了。那这个activeEffect是在什么时候会被赋值呢？是在执行render的时候，会有setupRenderEffect，会执行effect方法，effect方法中会做相应处理，activeEffect就会变成当前执行render时的一些操作，所以当执行set时，render就会被重新执行

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    export function track(target: object, type: TrackOpTypes, key: unknown) {
      if (!shouldTrack || activeEffect === undefined) {
        return
      }
      let depsMap = targetMap.get(target)
      if (!depsMap) {
        targetMap.set(target, (depsMap = new Map()))
      }
      let dep = depsMap.get(key)
      if (!dep) {
        depsMap.set(key, (dep = new Set()))
      }
      if (!dep.has(activeEffect)) {
        dep.add(activeEffect)
        activeEffect.deps.push(dep)
        if (__DEV__ && activeEffect.options.onTrack) {
          activeEffect.options.onTrack({
            effect: activeEffect,
            target,
            type,
            key
          })
        }
      }
    }

  • set=createSetter()，这个方法中会执行trigger方法，

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    function createSetter(shallow = false) {
      return function set(
        target: object,
        key: string | symbol,
        value: unknown,
        receiver: object
      ): boolean {
        const oldValue = (target as any)[key]
        if (!shallow) {
          value = toRaw(value)
          if (!isArray(target) && isRef(oldValue) && !isRef(value)) {
            oldValue.value = value
            return true
          }
        } else {
          // in shallow mode, objects are set as-is regardless of reactive or not
        }

        const hadKey = hasOwn(target, key)
        const result = Reflect.set(target, key, value, receiver)
        // don't trigger if target is something up in the prototype chain of original
        if (target === toRaw(receiver)) {
          if (!hadKey) {
            trigger(target, TriggerOpTypes.ADD, key, value)
          } else if (hasChanged(value, oldValue)) {
            trigger(target, TriggerOpTypes.SET, key, value, oldValue)
          }
        }
        return result
      }
    }

  • trigger方法

    • 从targetMap中获取depsMap
    • 如果type === TriggerOpTypes.CLEAR，那么就把depsMap.forEach(add)
    • 如果taget时数组，并且key时length,那就只对length这个属性或者在新增的属性上执行add
    • add操作就是把所有需要执行的dep遍历一遍，判断是否需要需要加入effects
    • 最后遍历执行effects里面的所有effect
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
export function trigger(
  target: object,
  type: TriggerOpTypes,
  key?: unknown,
  newValue?: unknown,
  oldValue?: unknown,
  oldTarget?: Map<unknown, unknown> | Set<unknown>
) {
  const depsMap = targetMap.get(target)
  if (!depsMap) {
    // never been tracked
    return
  }

  const effects = new Set<ReactiveEffect>()
  const computedRunners = new Set<ReactiveEffect>()
  const add = (effectsToAdd: Set<ReactiveEffect> | undefined) => {
    if (effectsToAdd) {
      effectsToAdd.forEach(effect => {
        if (effect !== activeEffect || !shouldTrack) {
          if (effect.options.computed) {
            computedRunners.add(effect)
          } else {
            effects.add(effect)
          }
        } else {
          // the effect mutated its own dependency during its execution.
          // this can be caused by operations like foo.value++
          // do not trigger or we end in an infinite loop
        }
      })
    }
  }

  if (type === TriggerOpTypes.CLEAR) {
    // collection being cleared
    // trigger all effects for target
    depsMap.forEach(add)
  } else if (key === 'length' && isArray(target)) {
    depsMap.forEach((dep, key) => {
      if (key === 'length' || key >= (newValue as number)) {
        add(dep)
      }
    })
  } else {
    // schedule runs for SET | ADD | DELETE
    if (key !== void 0) {
      add(depsMap.get(key))
    }
    // also run for iteration key on ADD | DELETE | Map.SET
    const isAddOrDelete =
      type === TriggerOpTypes.ADD ||
      (type === TriggerOpTypes.DELETE && !isArray(target))
    if (
      isAddOrDelete ||
      (type === TriggerOpTypes.SET && target instanceof Map)
    ) {
      add(depsMap.get(isArray(target) ? 'length' : ITERATE_KEY))
    }
    if (isAddOrDelete && target instanceof Map) {
      add(depsMap.get(MAP_KEY_ITERATE_KEY))
    }
  }

  const run = (effect: ReactiveEffect) => {
    if (__DEV__ && effect.options.onTrigger) {
      effect.options.onTrigger({
        effect,
        target,
        key,
        type,
        newValue,
        oldValue,
        oldTarget
      })
    }
    if (effect.options.scheduler) {
      effect.options.scheduler(effect)
    } else {
      effect()
    }
  }

  // Important: computed effects must be run first so that computed getters
  // can be invalidated before any normal effects that depend on them are run.
  computedRunners.forEach(run)
  effects.forEach(run)
}

对Map等的处理

  • 使用collectionHandlers里的方法,handler只代理一个方法那就是get

  • 在get里面会把对应原型上的方法都代理了，所以当访问proxy对象上的方法时，get就会返回instrumentations里的对应方法

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    export const mutableCollectionHandlers: ProxyHandler<CollectionTypes> = {
      get: createInstrumentationGetter(false, false)
    }
    function createInstrumentationGetter(isReadonly: boolean, shallow: boolean) {
      const instrumentations = shallow
        ? shallowInstrumentations
        : isReadonly
          ? readonlyInstrumentations
          : mutableInstrumentations

      return (
        target: CollectionTypes,
        key: string | symbol,
        receiver: CollectionTypes
      ) => {
        if (key === ReactiveFlags.IS_REACTIVE) {
          return !isReadonly
        } else if (key === ReactiveFlags.IS_READONLY) {
          return isReadonly
        } else if (key === ReactiveFlags.RAW) {
          return target
        }

        return Reflect.get(
          hasOwn(instrumentations, key) && key in target
            ? instrumentations
            : target,
          key,
          receiver
        )
      }
    }
    const mutableInstrumentations: Record<string, Function> = {
      get(this: MapTypes, key: unknown) {
        return get(this, key, toReactive)
      },
      get size() {
        return size((this as unknown) as IterableCollections)
      },
      has,
      add,
      set,
      delete: deleteEntry,
      clear,
      forEach: createForEach(false, false)
    }

    const iteratorMethods = ['keys', 'values', 'entries', Symbol.iterator]
    iteratorMethods.forEach(method => {
      mutableInstrumentations[method as string] = createIterableMethod(
        method,
        false,
        false
      )
      readonlyInstrumentations[method as string] = createIterableMethod(
        method,
        true,
        false
      )
      shallowInstrumentations[method as string] = createIterableMethod(
        method,
        false,
        true
      )
    })
    function get(
      target: MapTypes,
      key: unknown,
      wrap: typeof toReactive | typeof toReadonly | typeof toShallow
    ) {
      target = toRaw(target)
      const rawKey = toRaw(key)
      if (key !== rawKey) {
        track(target, TrackOpTypes.GET, key)
      }
      track(target, TrackOpTypes.GET, rawKey)
      const { has, get } = getProto(target)
      if (has.call(target, key)) {
        return wrap(get.call(target, key))
      } else if (has.call(target, rawKey)) {
        return wrap(get.call(target, rawKey))
      }
    }
    function set(this: MapTypes, key: unknown, value: unknown) {
      value = toRaw(value)
      const target = toRaw(this)
      const { has, get, set } = getProto(target)

      let hadKey = has.call(target, key)
      if (!hadKey) {
        key = toRaw(key)
        hadKey = has.call(target, key)
      } else if (__DEV__) {
        checkIdentityKeys(target, has, key)
      }

      const oldValue = get.call(target, key)
      const result = set.call(target, key, value)
      if (!hadKey) {
        trigger(target, TriggerOpTypes.ADD, key, value)
      } else if (hasChanged(value, oldValue)) {
        trigger(target, TriggerOpTypes.SET, key, value, oldValue)
      }
      return result
    }

  • 在被Proxy后的Map等对象上调用其原型方法时，都会调用其get方法，直接对Map对象Proxy时只有一个get方法，其会执行createInstrumentationGetter(false, false)的返回值，最终会执行mutableInstrumentations上的方法

  • 比如在调用add方法时，最终会调用mutableInstrumentations上的add方法

为何能监听到数组的新增操作

ECMAScript定义

proxy
